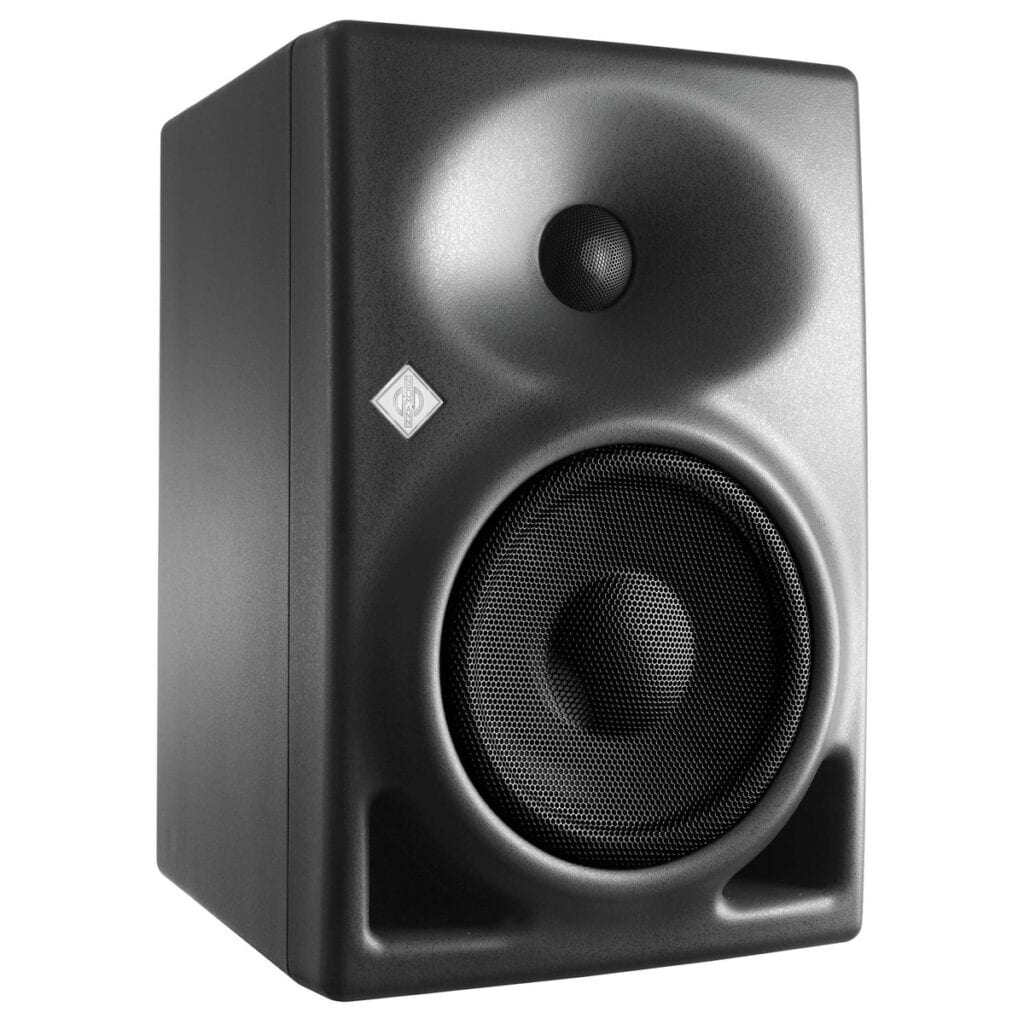

High-End near-field monitor med 5.25” bas og 1″ tweeter. 50 + 50 Watt. Pris pr. stk.
Neumann er garant for vellyd i særklasse, det ved de fleste. Nu præsenteres monitoren KD 120 A. Et banebrydende design der bygger på hæderkronede Klein og Hummel-design og kendskab til ultimative “near-field” monitors. Neumann KD 120 A lover at gøre det samme for monitors, som firmaet har gjort for mikrofoner. Super kvalitet, super lyd og grundlæggende godt design der holder til at blive brugt.
Specifikationer
- -3 dB free field frequency response 52 Hz … 21 kHz, ± 3 dB
- Pass band free field frequency response 54 Hz … 20 kHz, ± 2 dB
- Self-generated noise (with input gain set to 100 dB for 0 dBu) <20 dB(A) at 10 cm
- Sine wave output with a THD < 0.5 % at 1 m 95 dB SPL (>100 Hz)
- Max. SPL In half space at 3% THD at 1m 111.1 dB SPL (averaged between 100 Hz and 6 kHz)
- Woofer amplifier, cont.(peak) output power* 50 W (80 W)
- Tweeter amplifier, cont.(peak) output power* 50 W (80 W)
- Controller design Analog, active
- Crossover Frequency 2.0 kHz
- Crossover Slope (dB/oct.) 24, 4th order
- Equalization – Bass 0, -2.5, -5, -7.5 dB
- Equalization – Mid 0, -1.5, -3, -4.5 dB
- Equalization – High +1, 0, -1, -2 dB
- Protection circuitry Limiter: low, high
- Infrasonic filter frequency; slope 30 Hz; 6 dB/oct.
- Analog Input
- Impedance, electrically balanced
- 10k Ohms in position 94/108 dB SPL at 1 m
- 20k Ohms in position 100/114 dB SPL at 1 m
- Input gain control (sensitivity) 0 dBu to -15 dBu
- Output level control 94, 100, 108, 114 dB SPL
- CMRR >56 dB @ 15 kHz
